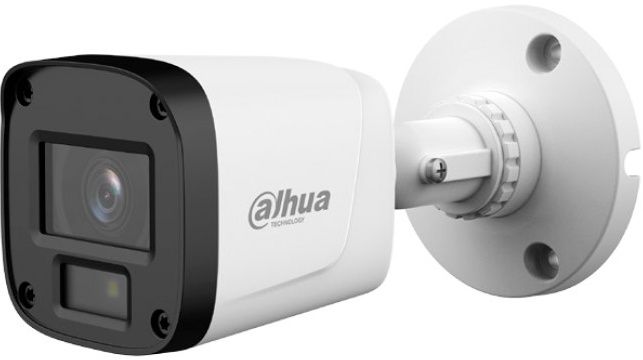

Dahua DH-HAC-B5E20P — Analog Camera

Description

The Dahua DH-HAC-B5E20P is a compact 2MP HDCVI bullet camera designed for straightforward HD analog surveillance. It provides 1080p video, Smart IR night vision up to 20 m, and switchable CVI/TVI/AHD output for flexible compatibility with supported XVR systems.

Key Features

• 2MP resolution with 1920 × 1080 output
• 1080p video up to 30 fps (NTSC)
• Smart IR illumination up to 20 m
• Fixed-focal 2.8 mm or 3.6 mm lens options
• Switchable CVI / TVI / AHD video output via BNC
• DWDR, BLC and 2D noise reduction
• Auto ICR day/night operation
• IP67 protection
• 12 VDC ±30% power supply

Specifications

• Image sensor: 2MP CMOS
• Maximum resolution: 1920 × 1080
• Lens: Fixed-focal, 2.8 mm / 3.6 mm
• IR distance: 20 m
• Minimum illumination: 0.02 lux @ F2.0 (color), 0.002 lux @ F2.0 (B/W), 0 lux with illuminator on
• Video frame rate: 1080p @ 25 fps PAL / 30 fps NTSC
• Video output: CVI / TVI / AHD via one BNC port
• WDR: DWDR
• Noise reduction: 2D NR
• Power: 12 VDC ±30%
• Maximum power consumption: 2.1 W
• Operating temperature: −40°C to +60°C
• Protection: IP67
• Dimensions: 136.8 × 69.8 × 69.5 mm
• Net weight: 0.13 kg
• Installation: Wall mount, ceiling mount or vertical pole mount
