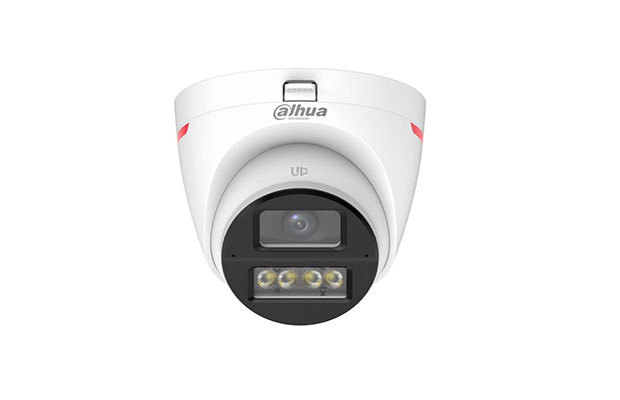

Dahua DH-HAC-HDW1549XP-A-PRO — 5MP WizColor HDCVI Eyeball Camera

Description

The Dahua DH-HAC-HDW1549XP-A-PRO is a 5MP WizColor HDCVI fixed-focal eyeball camera designed for 24/7 full-color surveillance. It combines 5MP imaging, 50 m Smart Light+ illumination, 130 dB true WDR, 3D noise reduction and built-in dual microphones for detailed video and audio assistance.

Key Features

• 5MP 16:9 WizColor HDCVI fixed-focal eyeball camera
• 24/7 full-color imaging with AI-ISP
• 50 m Smart Light+ illumination with 4 warm lights
• 130 dB true WDR and 3D noise reduction
• Built-in dual microphones with up to 12 m pickup distance
• 3.6 mm fixed-focal lens, with 2.8 mm optional
• CVI / TVI / AHD / CVBS selectable video output
• IP67 protection
• 12 VDC power supply

Specifications

• Model: DH-HAC-HDW1549XP-A-PRO
• Image Sensor: 5MP CMOS
• Resolution: 2880 × 1620
• Minimum Illumination: 0.0001 lux@F1.0 (Color, 30 IRE); 0 lux with illuminator on
• Illumination: 50 m warm light
• Illuminator: 4 × warm light
• Lens: Fixed-focal M12, 3.6 mm; 2.8 mm optional
• Aperture: F1.0
• Field of View: 2.8 mm H109.6° / V57.5° / D131°; 3.6 mm H88.2° / V47.6° / D104.5°
• WDR: 130 dB true WDR
• Noise Reduction: 3D NR
• Audio: Built-in dual microphone
• Audio Pickup Distance: Up to 12 m
• Video Output: CVI / TVI / AHD / CVBS via BNC
• Power: 12 VDC ±30%
• Maximum Power Consumption: 5.8 W
• Operating Temperature: -40°C to +60°C
• Protection: IP67
• Dimensions: 108.7 × Φ122 mm
• Net Weight: 0.42 kg
