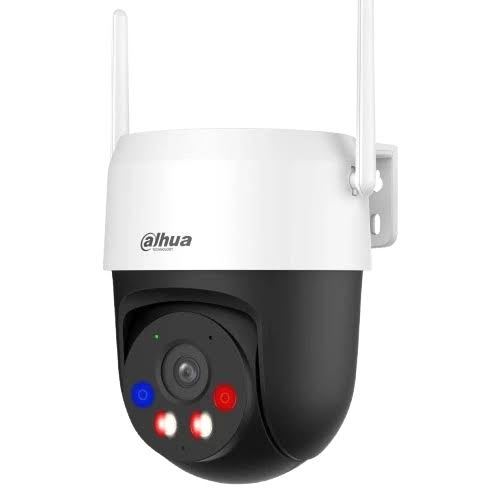

Dahua DH-P3AS-PV — Picoo A2 3MP Outdoor Pan & Tilt Wi-Fi Camera

Description

The Dahua DH-P3AS-PV Picoo A2 is a 3MP outdoor pan-and-tilt Wi-Fi camera designed for smart outdoor security monitoring. It combines 360° coverage with AI human and vehicle detection, automatic tracking, smart dual illumination, active deterrence, two-way audio, and remote monitoring through the DMSS app.

Key Features

• 3MP resolution with 2304 × 1296 video
• Motorized pan 0°–345°, tilt 0°–90° and rotation 0°–345°
• Smart Dual Light with IR and warm light up to 30m
• AI human and vehicle detection
• Automatic target tracking and preset patrol
• Active deterrence with red and blue warning lights and sound alarm
• Built-in microphone and speaker for two-way talk
• Wi-Fi 6 dual-band 2.4GHz and 5GHz connectivity
• Bluetooth pairing
• MicroSD storage up to 256GB
• ONVIF Profile S, G and T support
• IP66 outdoor protection
• DMSS mobile monitoring for Android and iOS

Specifications

• Image sensor: 1/2.8-inch CMOS
• Resolution: 2304 × 1296
• Lens: Fixed-focal, 4.0mm
• Field of view: H 83° / V 45° / D 98°
• Pan: 0°–345°
• Tilt: 0°–90°
• Rotation: 0°–345°
• IR distance: Up to 30m
• Warm-light distance: Up to 30m
• Video compression: H.265 / H.264 / H.264H / H.264B; MJPEG on sub stream
• Frame rate: Up to 25/30fps at 2304 × 1296
• WDR: DWDR
• Audio: Built-in microphone and speaker; G.711a / G.711Mu / PCM
• Network: RJ-45 10/100 Base-T
• Wi-Fi: IEEE 802.11a/b/g/n/ac/ax, 2.4GHz & 5GHz
• Storage: MicroSD up to 256GB
• Power: 12V DC ±30%
• Power consumption: Basic 1.8W, maximum 13.8W
• Operating temperature: −30°C to +55°C
• Protection: IP66
• Dimensions: 125.4 × 110 × 140.3mm
• Net weight: 0.4kg
