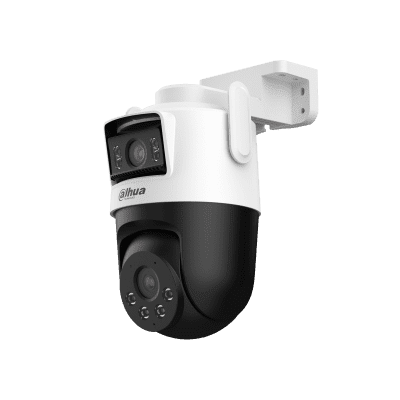

Dahua DH-P3D-3F-PV-P — Picoo Dual D1 3+3MP Outdoor Pan & Tilt Wi-Fi Camera

Description

The Dahua DH-P3D-3F-PV-P Picoo Dual D1 is a 3+3MP outdoor WizColor Wi-Fi dual-lens pan-and-tilt camera. It combines a fixed wide-angle camera and a motorized PT camera for coordinated monitoring, with AI human and vehicle detection, linkage tracking, two-way audio, sound and light alarm, Wi-Fi connectivity, PoE support, and IP66 outdoor protection.

Key Features

• Dual 3MP cameras with 2304 × 1296 resolution per channel
• Fixed 2.8mm lens plus 6mm PT lens
• Motorized pan 0°–352° and tilt 0°–90°
• WizColor technology for brighter low-light imaging
• AI human and vehicle detection on both lenses
• Linkage tracking with coordinated fixed and PT lens monitoring
• Warm-light illumination up to 40m
• 120dB WDR
• Built-in microphone and speaker for two-way talk
• Wi-Fi connectivity with Bluetooth pairing
• RJ-45 10/100 Base-T and PoE 802.3af support
• MicroSD storage up to 256GB
• Sound and light alarm for active deterrence
• IP66 outdoor protection
• DMSS mobile monitoring for Android and iOS

Specifications

• Image sensor: 1/2.9-inch CMOS × 2 (PT + fixed)
• Resolution: 2304 × 1296 per channel
• Fixed lens: 2.8mm, F1.0; H 89° / V 48° / D 105°
• PT lens: 6mm, F1.0; H 52° / V 29° / D 60°
• Pan: 0°–352°
• Tilt: 0°–90°
• Warm-light distance: Up to 40m
• Video compression: H.265 / H.264 / MJPEG on sub-stream
• Frame rate: Up to 20fps at 2304 × 1296
• WDR: 120dB
• Audio: Built-in microphone and speaker; two-way audio
• Network: RJ-45 10/100 Base-T
• Wi-Fi: 2.4GHz wireless connectivity; Bluetooth pairing
• PoE: IEEE 802.3af
• Storage: MicroSD up to 256GB
• Power: 12V DC ±30% / PoE
• Operating temperature: −30°C to +50°C
• Protection: IP66
• Dimensions: 159.4 × 119.1 × 210mm
• Net weight: 585g
