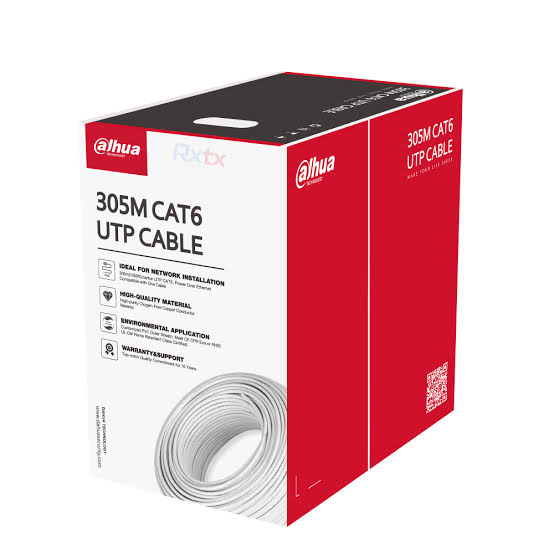

Dahua DH-PFM920I-6UN-C — 305M CAT6 UTP Cable

Description

The Dahua DH-PFM920I-6UN-C is a 305-meter UTP CAT6 network cable designed for reliable network and PoE installations. It uses high-purity oxygen-free copper conductors and a customized PVC outer sheath with CE CPR Eca flame-retardant certification.

Key Features

• 305 m (1,000 ft) carton
• CAT6 UTP network cable
• 24 AWG oxygen-free copper conductor
• 99.97% conductor purity
• Suitable for network cabling and PoE applications
• CPR Eca flame-retardant certified
• 10-year warranty
• White PVC outer sheath

Specifications

• Model: DH-PFM920I-6UN-C
• Cable type: U/UTP CAT6
• Length: 305 m (1,000 ft) ± 1.5 m
• Conductor: Oxygen-free copper, 99.97% purity
• Conductor size: 24 AWG / 0.53 mm ± 0.01 mm
• Insulation: HDPE
• Outer sheath: PVC
• Sheath diameter: 6.0 mm ± 0.3 mm
• Characteristic impedance: 100 ± 15 Ω
• Maximum attenuation: 34.8 dB/100 m @ 250 MHz
• NEXT: ≥39.3 dB/100 m @ 250 MHz
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C
• Certification: CPR Eca
• Warranty: 10 years
• Color: White
