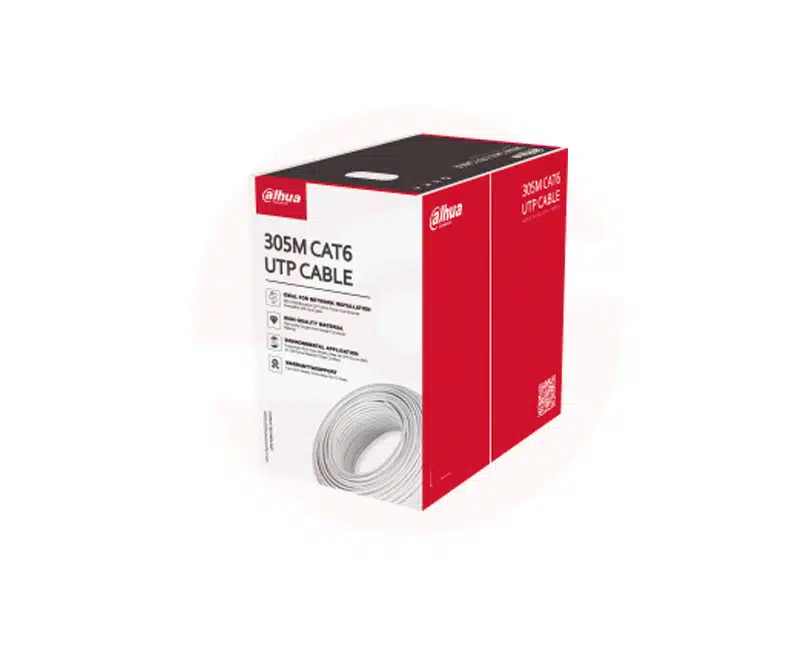

Dahua DH-PFM920I-6UN-CN — 305M CAT6 UTP Cable

Description

The Dahua DH-PFM920I-6UN-CN is a 305 m CAT6 U/UTP cable designed for reliable network installation and structured cabling applications. It uses 24 AWG oxygen-free copper conductors and is supplied as a full 305 m box.

Key Features

• CAT6 U/UTP cable
• 305 m (1,000 ft) length
• 24 AWG oxygen-free copper conductor
• Designed for network installation
• PVC outer sheath
• White cable

Specifications

• Model: DH-PFM920I-6UN-CN
• Cable Type: U/UTP CAT6
• Length: 305 m (1,000 ft)
• Conductor: Oxygen-free copper
• Conductor Size: 24 AWG / 0.53 mm
• Conductor Purity: 99.97%
• Characteristic Impedance: 100 ± 15 Ω
• Maximum Attenuation: 34.8 dB/100 m @ 250 MHz
• NEXT: ≥39.3 dB/100 m @ 250 MHz
• Outer Sheath: PVC
• Sheath Diameter: 6.0 mm ± 0.3 mm
• Certification: CPR Eca
• Operating Temperature: -20°C to +60°C
• Warranty: 10 years
• Color: White
