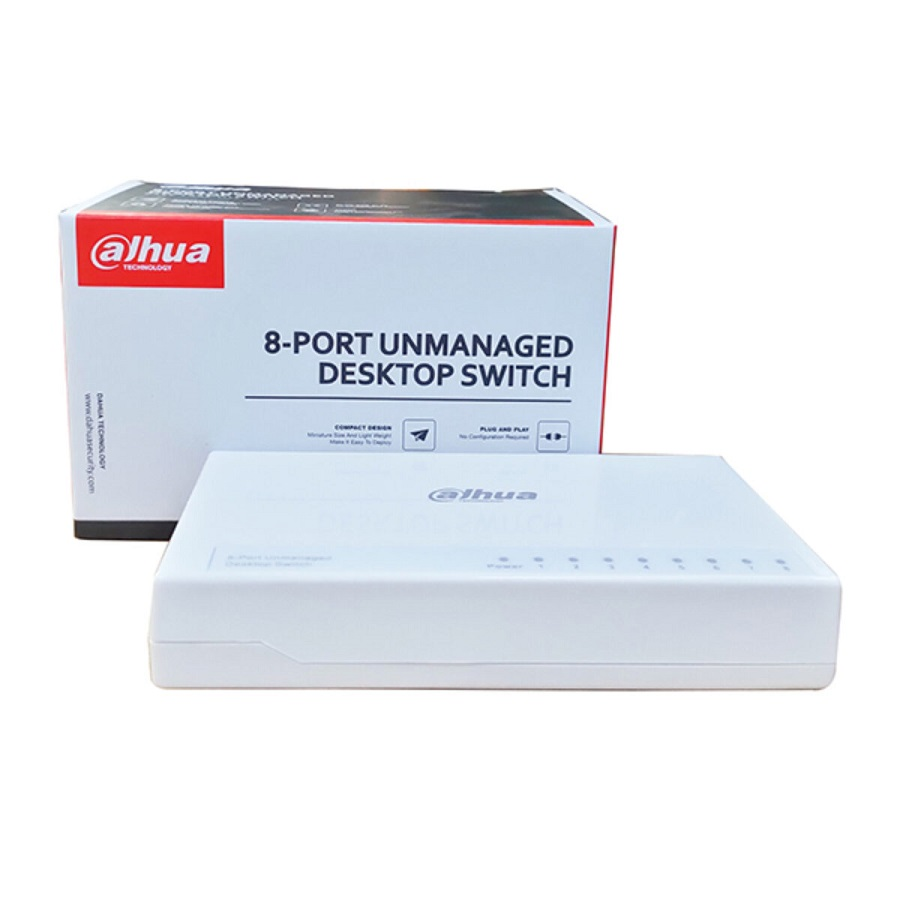

Dahua DH-PFS3008-8ET-L — 8-Port Unmanaged Fast Ethernet Switch

Description

The Dahua DH-PFS3008-8ET-L is a compact 8-port unmanaged desktop switch designed for simple and reliable network connectivity in small office, home, and similar network installations. It provides eight adaptive 10/100 Mbps Ethernet ports with plug-and-play operation and no configuration required.

Key Features

• 8 × 10/100 Mbps adaptive Ethernet ports
• Unmanaged Layer 2 switch with plug-and-play operation
• Compact and lightweight desktop design
• 1.6 Gbps switching capacity
• 1.1904 Mpps packet forwarding rate
• 2K MAC address table
• Built-in protection against ESD and common-mode lightning surges
• 5VDC power supply

Specifications

• Model: DH-PFS3008-8ET-L
• Switch Type: 8-Port Unmanaged Fast Ethernet Switch
• Layer: Layer 2
• Ethernet Ports: 8 × 10/100 Base-T
• PoE: No
• Switching Capacity: 1.6 Gbps
• Packet Forwarding Rate: 1.1904 Mpps
• Packet Buffer Memory: 768 Kbit
• MAC Table: 2K
• Power Supply: 5VDC / 1A
• Operating Temperature: 0°C to +45°C
• Operating Humidity: 5%–95% RH
• Dimensions: 132.9 × 62.4 × 24.0 mm
• Weight: 0.16 kg
• Housing: Plastic
• Installation: Desktop mount
• Certifications: CE; FCC
