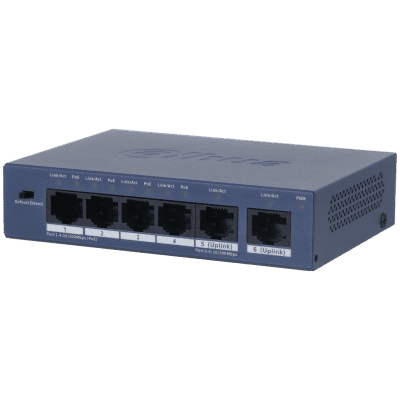

Dahua DH-S3006-4ET-36 — 6-Port Unmanaged Desktop PoE Switch

Description

The Dahua DH-S3006-4ET-36 is a compact 6-port unmanaged desktop PoE switch designed for reliable network connectivity and powering compatible devices. It provides four 10/100 Mbps PoE ports and two 10/100 Mbps uplink ports, with IEEE 802.3af/at support and long-distance PoE transmission up to 250 meters.

Key Features

• 6-port unmanaged desktop switch
• 4 × 10/100 Mbps PoE ports
• 2 × 10/100 Mbps uplink ports
• IEEE 802.3af and IEEE 802.3at PoE support
• Up to 30W PoE output per port
• 36W total PoE budget
• Long-distance PoE transmission up to 250m
• 1.2 Gbps switching capacity
• PoE watchdog support
• Compact metal housing with desktop and wall-mount installation

Specifications

• Model: DH-S3006-4ET-36
• Switch Type: 6-Port Unmanaged Desktop PoE Switch
• Layer: Unmanaged
• PoE Ports: 4 × RJ45 10/100 Mbps
• Uplink Ports: 2 × RJ45 10/100 Mbps
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Power: Up to 30W per port; 36W total
• Long-Distance PoE: Up to 250m on ports 1–4
• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.893 Mpps
• Packet Buffer: 768 Kbit
• MAC Table: 2K
• Jumbo Frame: 2048 bytes
• Power Supply: 53V, 50/60Hz, max. 0.8A external power supply
• Power Consumption: 1.3W idle; 38.3W full load
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10%–90% RH, non-condensing
• Storage Temperature: -40°C to +75°C
• Dimensions: 115.5 × 84.3 × 27 mm
• Weight: 0.19 kg
• Housing: Sheet metal
• Installation: Desktop mount; wall mount
• Certification: CE
