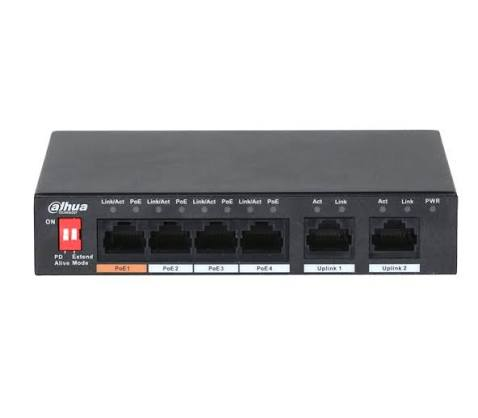

Dahua DH-S3006-4ET-60 — 6-Port Unmanaged PoE Switch

Description

The Dahua DH-S3006-4ET-60 is a compact 6-port unmanaged PoE switch designed for small IP surveillance and networking installations. It provides four 10/100 Mbps PoE ports and two 10/100 Mbps uplink ports, with a total 60W PoE budget and long-distance PoE transmission up to 250 metres in Extend mode.

Key Features

• 6-port unmanaged desktop PoE switch
• 4 × 10/100 Mbps PoE ports
• 2 × 10/100 Mbps uplink ports
• IEEE 802.3af / 802.3at PoE support
• Up to 60W total PoE power budget
• Port 1 supports Hi-PoE up to 60W
• Up to 30W per PoE port, subject to the total power budget
• Long-distance PoE transmission up to 250m in Extend mode
• Unmanaged plug-and-play operation
• Compact fanless metal housing with desktop and wall mounting

Specifications

• Model: DH-S3006-4ET-60
• Switch Type: 6-Port Unmanaged Desktop PoE Switch
• PoE Ports: 4 × RJ45 10/100 Mbps
• Uplink Ports: 2 × RJ45 10/100 Mbps
• PoE Standards: IEEE 802.3af / IEEE 802.3at / Hi-PoE
• PoE Power: Port 1 up to 60W; Ports 2–4 up to 30W each; total 60W
• Long-Distance PoE: Up to 250m at 10 Mbps in Extend mode
• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.893 Mpps
• Packet Buffer: 768 Kbit
• MAC Address Table: 2K
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Power Supply: 53V, 50/60Hz, maximum 1.22A
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10%–90% RH, non-condensing
• Dimensions: 115.5 × 84.3 × 27 mm
• Weight: 0.19 kg
• Housing: Sheet metal
• Installation: Desktop / Wall mount
• Certification: CE
