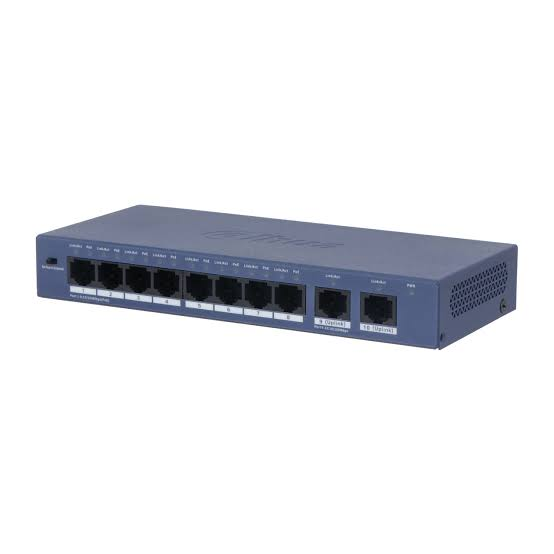

Dahua DH-S3010-8ET-2ET-60 — 10-Port Unmanaged PoE Switch

Description

The Dahua DH-S3010-8ET-2ET-60 is a compact unmanaged PoE switch designed for IP surveillance and network installations. It provides eight 10/100 Mbps PoE ports and two 10/100 Mbps uplink ports, with a total 60W PoE budget and long-distance PoE transmission up to 250 metres in Extend mode.

Key Features

• 10-port unmanaged PoE switch
• 8 × 10/100 Mbps PoE ports
• 2 × 10/100 Mbps uplink ports
• IEEE 802.3af / 802.3at PoE support
• Up to 60W total PoE power budget
• Port 1 supports Hi-PoE up to 60W
• Up to 30W per PoE port, subject to total power budget
• Long-distance PoE transmission up to 250m in Extend mode
• Unmanaged plug-and-play operation
• Compact metal housing

Specifications

• Model: DH-S3010-8ET-2ET-60
• Switch Type: 10-Port Unmanaged PoE Switch
• PoE Ports: 8 × RJ45 10/100 Mbps
• Uplink Ports: 2 × RJ45 10/100 Mbps
• PoE Standards: IEEE 802.3af / IEEE 802.3at / Hi-PoE
• PoE Power: Port 1 up to 60W; other PoE ports up to 30W each; total 60W
• Long-Distance PoE: Up to 250m in Extend mode
• Switching Capacity: 2.0 Gbps
• Packet Forwarding Rate: 1.488 Mpps
• MAC Address Table: 2K
• Power Supply: 53V DC
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10%–90% RH, non-condensing
• Housing: Metal
