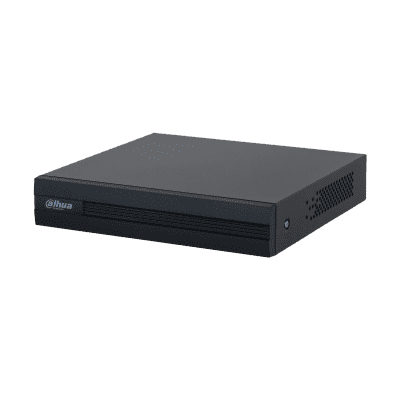

Dahua DH-XVR1B04-I/T — XVR

Description

The Dahua DH-XVR1B04-I/T is a 4-channel Cooper-I Series penta-brid WizSense digital video recorder for compact surveillance systems. It supports HDCVI, AHD, TVI, CVBS and IP cameras, with SMD Plus and AI Coding for efficient recording and human/vehicle filtering.

Key Features

• 4-channel analog video input
• Up to 5-channel IP camera input, up to 2MP
• Supports HDCVI / AHD / TVI / CVBS / IP
• 4-channel SMD Plus
• AI Coding and Smart H.265+
• 4-channel two-way talk
• 1 SATA bay, up to 6TB
• HDMI and VGA video output

Specifications

• Analog inputs: 4 BNC
• IP inputs: Up to 5 channels
• Analog recording: 1080N / 720p
• Compression: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
• Audio: 1 RCA input / 1 RCA output; coaxial audio
• Two-way talk: 4 channels
• Storage: 1 SATA, up to 6TB
• Network: 10/100 Mbps Ethernet
• Video output: HDMI + VGA
• Power: 12 VDC, 1.5 A
• Power consumption: <7 W without HDD
• Dimensions: 197 × 204.3 × 41.5 mm
• Operating temperature: −10°C to +45°C
