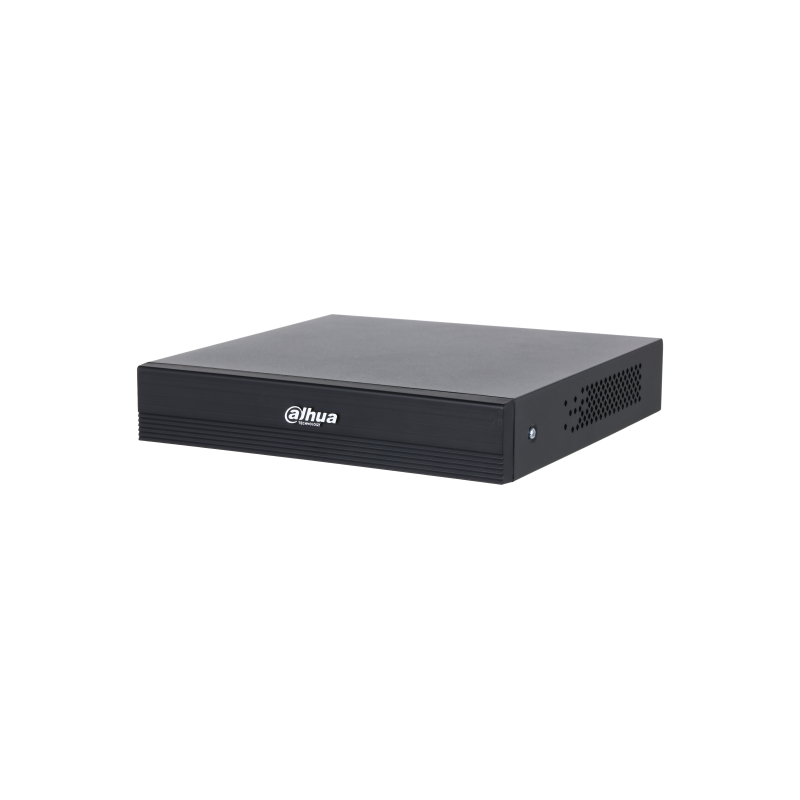

Dahua DH-XVR1B08H-I/T — XVR

Description

The Dahua DH-XVR1B08H-I/T is an 8-channel Cooper-I H-series penta-brid WizSense recorder for 5MP-value and 1080p surveillance. It supports HDCVI, AHD, TVI, CVBS and IP cameras with SMD Plus, AI Coding and two-way talk.

Key Features

• 8-channel analog video input
• Up to 12-channel IP camera input, up to 6MP
• 5MP-value / 1080p recording capability
• 8-channel SMD Plus
• AI Coding and Smart H.265+
• 8-channel two-way talk
• 1 SATA bay, up to 16TB
• HDMI and VGA output

Specifications

• Analog inputs: 8 BNC
• IP inputs: Up to 12 channels
• Analog formats: HDCVI / AHD / TVI / CVBS
• Compression: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
• Audio: RCA + coaxial audio
• Two-way talk: 8 channels
• Storage: 1 SATA, up to 16TB
• Network: 10/100 Mbps Ethernet
• Video output: HDMI + VGA
• Power: 12 VDC, 1.5 A
• Power consumption: <7 W without HDD
• Dimensions: 197 × 204.3 × 41.5 mm
• Operating temperature: −10°C to +45°C
