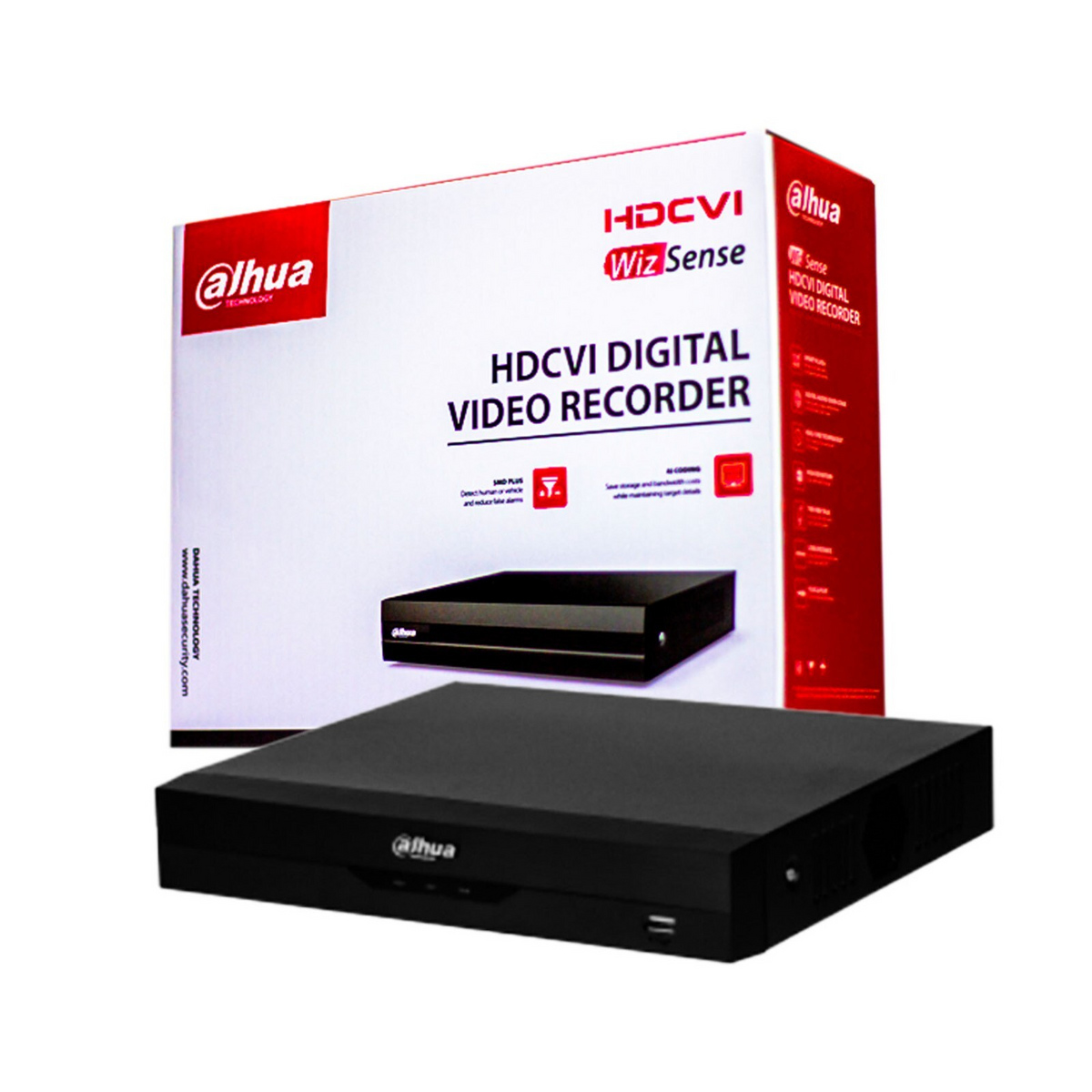

Dahua DH-XVR5104HS-5M-I3/T — XVR

Description

The Dahua DH-XVR5104HS-5M-I3/T is a 4-channel WizSense penta-brid digital video recorder designed for 5MP surveillance systems. It supports analog HDCVI/AHD/TVI/CVBS cameras and up to 6 IP cameras, with AcuPick, face recognition, perimeter protection and SMD Plus.

Key Features

• 4-channel analog video input
• Up to 6-channel IP input, up to 6MP
• 5MP recording capability
• 4-channel AcuPick
• 2-channel face recognition
• 4-channel perimeter protection
• 4-channel SMD Plus
• 4-channel AI Coding
• Two-way talk
• 1 SATA bay, up to 16TB

Specifications

• Analog inputs: 4 BNC, HDCVI / AHD / TVI / CVBS auto-detect
• IP inputs: Up to 6 channels
• Incoming / recording / outgoing bandwidth: 32 Mbps
• Encoding: Up to 5MP depending on channel and mode
• Video compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
• Audio: RCA + coaxial audio
• Two-way talk: 4 channels
• Storage: 1 SATA, up to 16TB
• Network: 10/100 Mbps Ethernet
• Video output: HDMI + VGA
• Power: 12 VDC, 1.5 A
• Power consumption: <5 W without HDD
• Dimensions: 260 × 237.8 × 47.6 mm
• Operating temperature: −10°C to +55°C
