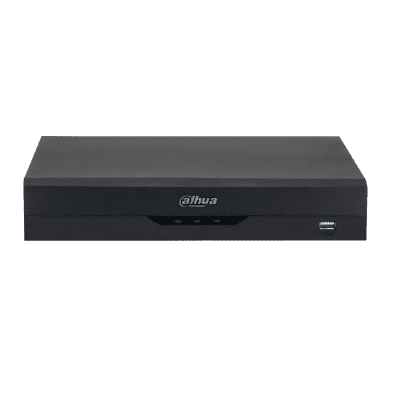

Dahua DH-XVR5116HS-5M-I3/T — XVR

Description

The Dahua DH-XVR5116HS-5M-I3/T is a 16-channel WizSense penta-brid recorder designed for high-capacity 5MP surveillance systems. It supports HDCVI, AHD, TVI, CVBS and IP cameras with AcuPick, face recognition, perimeter protection, SMD Plus and AI Coding.

Key Features

• 16-channel analog video input
• Up to 24-channel IP input, up to 6MP
• 5MP recording capability
• AcuPick intelligent search
• Face recognition
• Perimeter protection
• 16-channel SMD Plus
• AI Coding and Smart H.265+
• Two-way talk
• 1 SATA bay, up to 16TB

Specifications

• Analog inputs: 16 BNC, HDCVI / AHD / TVI / CVBS
• IP inputs: Up to 24 channels
• Bandwidth: Up to 64 Mbps incoming
• Encoding: Up to 5MP depending on channel and mode
• Compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
• Audio: RCA + coaxial audio
• Two-way talk: 16 channels
• Storage: 1 SATA, up to 16TB
• Network: 10/100 Mbps Ethernet
• Video output: HDMI + VGA
• Power: 12 VDC, 2 A
• Operating temperature: −10°C to +55°C
