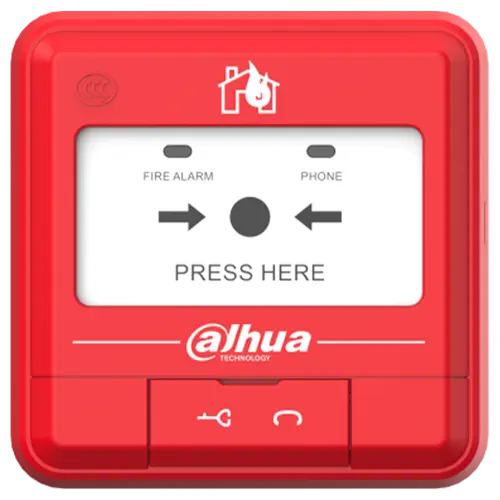

Dahua DHI-HY-C121 Manual Call Point

Description

The Dahua DHI-HY-C121 is a conventional manual call point designed to allow users to manually trigger a fire alarm signal when an emergency is detected. It features a simple resettable design, two-wire polarity-free wiring and compatibility with third-party conventional fire alarm panels.

Key Features

• Conventional manual call point
• Two-wire, polarity-free wiring
• Easy to operate and reset
• Manual contact for direct alarm activation
• Visual alarm indication
• Compatible with third-party conventional fire alarm panels
• Strong resistance to electromagnetic interference
• Wall-mount installation
• EN54-11 compliant

Specifications

• Model: DHI-HY-C121
• Device Type: Conventional Manual Call Point
• Working Voltage: DC 9V–30V
• Standby Current: ≤ 40 μA
• Alarm Current: ≤ 9 mA
• Alarm Mode: Visual alarm
• Operating Temperature: -10°C to +55°C
• Operating Humidity: ≤ 95% RH, non-condensing
• Dimensions with Base: 90 × 90 × 44 mm
• Weight with Base: 136 g
• Installation: Wall Mount
• Compliance Standard: EN54-11
