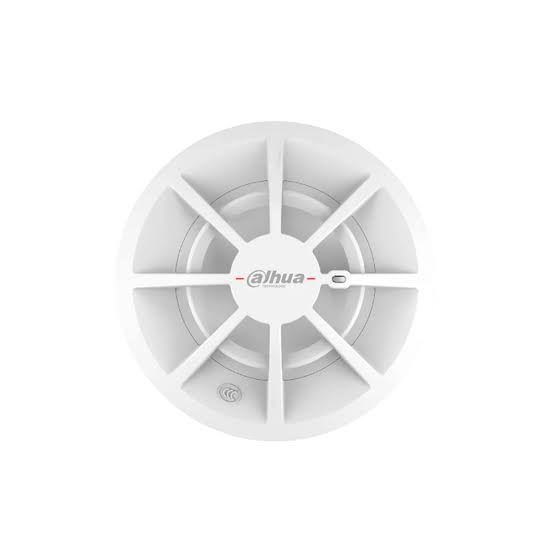

Dahua DHI-HY-C132 Heat Detector

Description

The Dahua DHI-HY-C132 is a conventional heat detector designed for reliable fire detection in environments where smoke detection may not be suitable. It uses a thermosensitive element to detect abnormal temperature conditions and trigger a fire alarm.

Key Features

• Conventional heat detector
• A2R heat detector class
• Fixed-temperature and rate-of-rise detection
• Two-wire, polarity-free wiring
• Visual alarm indication
• Ceiling-mount installation
• Compatible with conventional fire alarm control panels
• EN 54-5 compliant

Specifications

• Model: DHI-HY-C132
• Detector Type: Conventional Heat Detector
• Sensor Class: A2R
• Working Voltage: DC 9V–30V
• Rated Power: 3.408 mW
• Standby Current: ≤ 45 μA
• Alarm Current: ≤ 24 mA
• Fixed Detection Threshold: 62°C ± 3°C
• Dynamic Detection: 1 to 30 K/min
• Alarm Mode: Visual alarm
• Coverage Area: 50 m² at H ≤ 4 m; 30 m² at 4 m < H ≤ 12 m
• Operating Temperature: -10°C to +50°C
• Operating Humidity: ≤ 95% RH, non-condensing
• Dimensions with Base: Φ100 × 50 mm
• Weight with Base: 81 g
• Installation: Ceiling Mount
• Compliance Standard: EN 54-5
