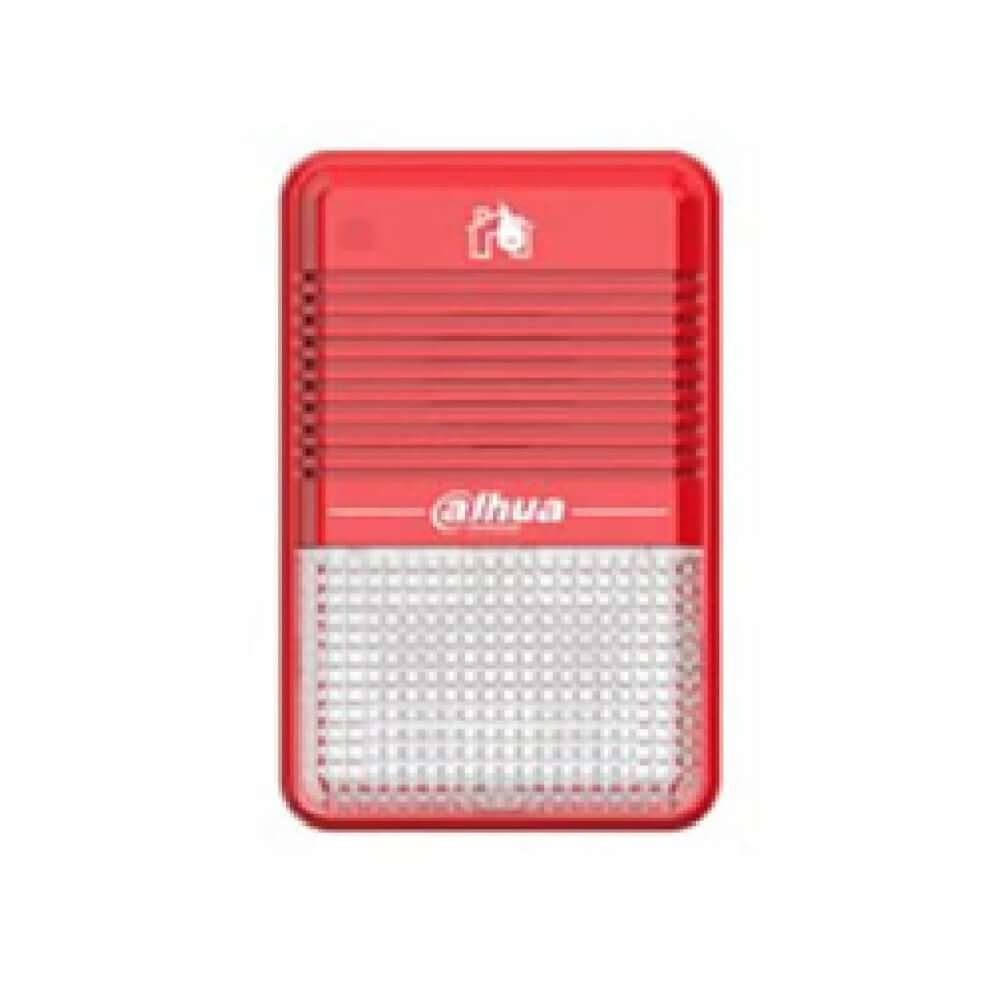

Dahua DHI-HY-C151 Sounder Strobe

Description

The Dahua DHI-HY-C151 is a conventional sounder strobe designed to provide audible and visual fire alarm notification. It uses two-wire, polarity-free wiring and is suitable for conventional fire alarm control panels.

Key Features

• Conventional sounder strobe
• Visual and audible alarm
• Two-wire, polarity-free wiring
• Non-addressable design
• Modified tone with 4–5 second cycle
• Wall-mount installation
• EN54-3 and EN54-23 compliant

Specifications

• Model: DHI-HY-C151
• Device Type: Conventional Sounder Strobe
• Working Voltage: DC 9V–30V
• Rated Power: 132.6 mW
• Standby Current: ≤ 270 μA
• Alarm Current: ≤ 30 mA
• Alarm Mode: Visual and audible alarm
• Alarm Volume: Modified Tone, 4–5 s
• Sound Pressure Level: 75–115 dB(A) at 3 m
• Operating Temperature: -10°C to +55°C
• Operating Humidity: ≤ 95% RH, non-condensing
• Dimensions with Base: 125 × 80 × 40 mm
• Weight with Base: 118 g
• Installation: Wall Mount
• Wiring: Two-wire, polarity-free
• Compliance Standard: EN54-3, EN54-23
