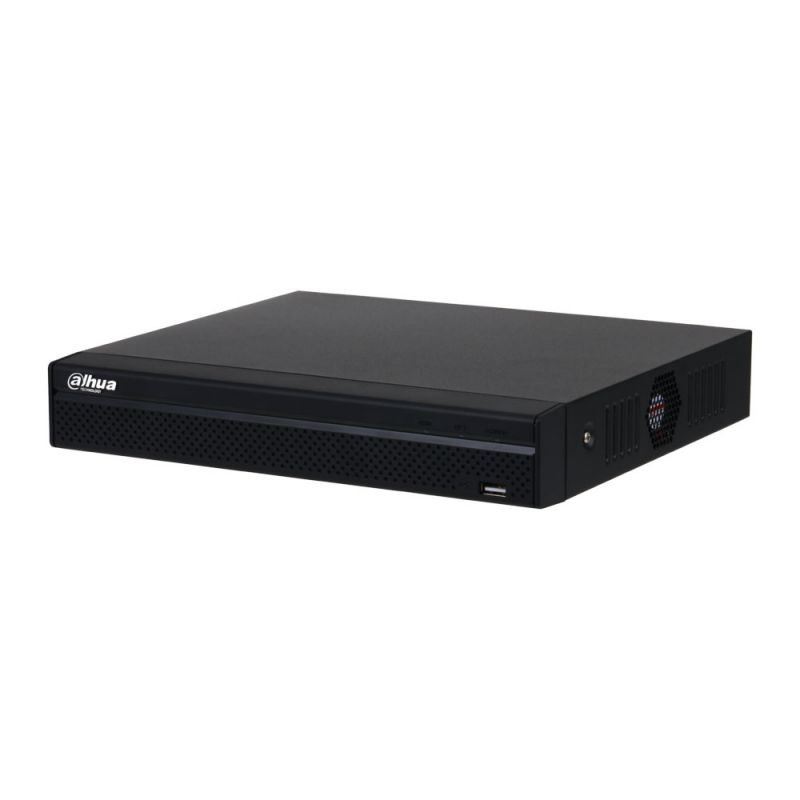

Dahua DHI-NVR1104HS-S3/H — 4-Channel Lite H.265 Network Video Recorder

Description

The Dahua DHI-NVR1104HS-S3/H is a compact 4-channel Lite network video recorder designed for IP surveillance systems. It supports up to 8MP recording, efficient Smart H.265+/H.264+ compression, ONVIF and RTSP camera integration, and simultaneous HDMI/VGA display output.

Key Features

• 4-channel IP camera access
• Supports recording resolutions up to 8MP
• Decodes up to 1-channel 8MP or 4-channel 1080p at 30 fps
• Smart H.265+ / H.265 / Smart H.264+ / H.264 compression
• 1 SATA 2.0 HDD interface supporting up to 8TB
• 1 HDMI and 1 VGA video output, up to 1080p
• ONVIF and RTSP support
• 80 Mbps incoming and recording bandwidth
• 60 Mbps forwarding bandwidth
• 2 USB 2.0 ports
• 12V DC power supply

Specifications

• Model: DHI-NVR1104HS-S3/H
• IP Channels: 4
• Supported Resolution: Up to 8MP
• Decoding: 1-ch@8MP, 1-ch@5MP, 2-ch@4MP, 2-ch@3MP, or 4-ch@1080p at 30 fps
• Video Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264
• Network Bandwidth: 80 Mbps access / 80 Mbps storage / 60 Mbps forwarding
• HDD: 1 × SATA 2.0, up to 8TB
• Video Output: 1 × HDMI / 1 × VGA, up to 1080p
• Network: 1 × RJ45 10/100 Mbps
• USB: 2 × USB 2.0
• Audio: 1 × RCA input / 1 × RCA output
• Third-Party Camera Access: ONVIF / RTSP
• Power: DC 12V, 1.5A
• Power Consumption: ≤10W without HDD
• Operating Temperature: -10°C to +45°C
• Dimensions: 260 × 225 × 47.6 mm
• Net Weight: 0.81 kg
