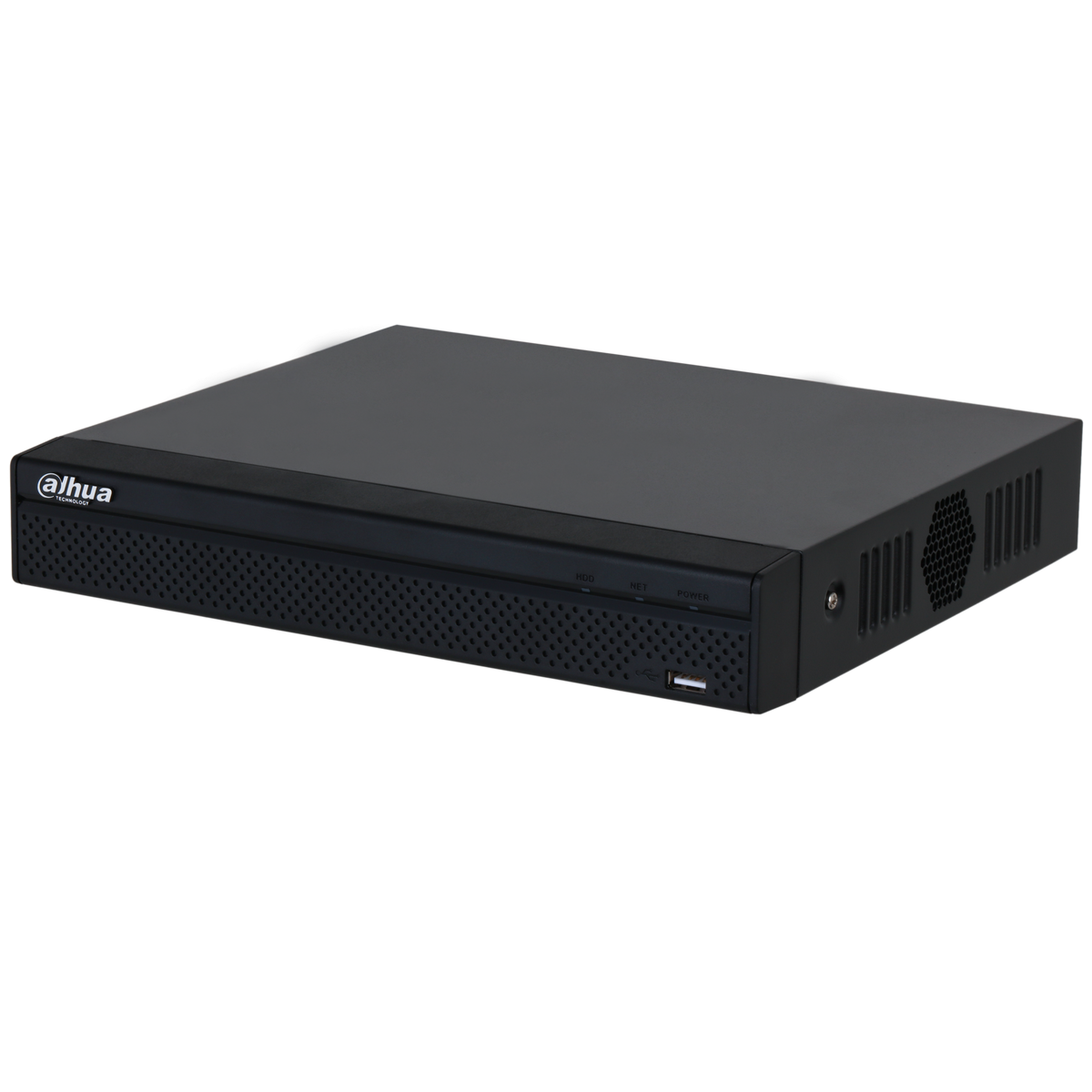

Dahua DHI-NVR2116HS-4KS3 — 16-Channel 4K Lite Network Video Recorder

Description

The Dahua DHI-NVR2116HS-4KS3 is a 16-channel compact 1U Lite network video recorder for IP surveillance systems. It supports IP cameras up to 12MP, 4K HDMI output, Smart H.265+ compression, 4-channel SMD Plus by recorder, and a single HDD up to 20TB.

Key Features

• 16-channel IP camera access
• Supports IP camera resolutions up to 12MP
• Up to 144 Mbps incoming and recording bandwidth and 72 Mbps outgoing bandwidth
• Maximum decoding capability of 6 × 1080p at 30 fps
• AI by recorder with 4-channel SMD Plus
• AI by camera supports perimeter protection and SMD
• Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG compression
• 1 SATA HDD bay supporting up to 20TB
• 1 HDMI and 1 VGA video output
• ONVIF Profile T / S / G support
• 2 USB 2.0 ports
• Gigabit Ethernet network port
• 12V DC power supply

Specifications

• Model: DHI-NVR2116HS-4KS3
• Recorder Type: 16-Channel Compact 1U 1HDD Lite NVR
• IP Channels: 16
• Maximum IP Camera Resolution: Up to 12MP
• Decoding: Up to 6 × 1080p at 30 fps
• Incoming / Recording / Outgoing Bandwidth: 144 / 144 / 72 Mbps
• Video Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
• AI: SMD Plus by recorder, 4 channels
• AI by Camera: Perimeter Protection / SMD
• HDD: 1 × SATA, up to 20TB
• Video Output: 1 × HDMI / 1 × VGA
• HDMI Resolution: Up to 3840 × 2160
• Network: 1 × RJ45 10/100/1000 Mbps
• USB: 2 × USB 2.0
• Audio: 1 × RCA input / 1 × RCA output
• Third-Party Camera Access: ONVIF Profile T / S / G
• Power: 12V DC, 1.5A
• Power Consumption: <10W without HDD
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10%–93% RH, non-condensing
• Dimensions: 260 × 232.5 × 47.6 mm
• Net Weight: 0.85 kg
