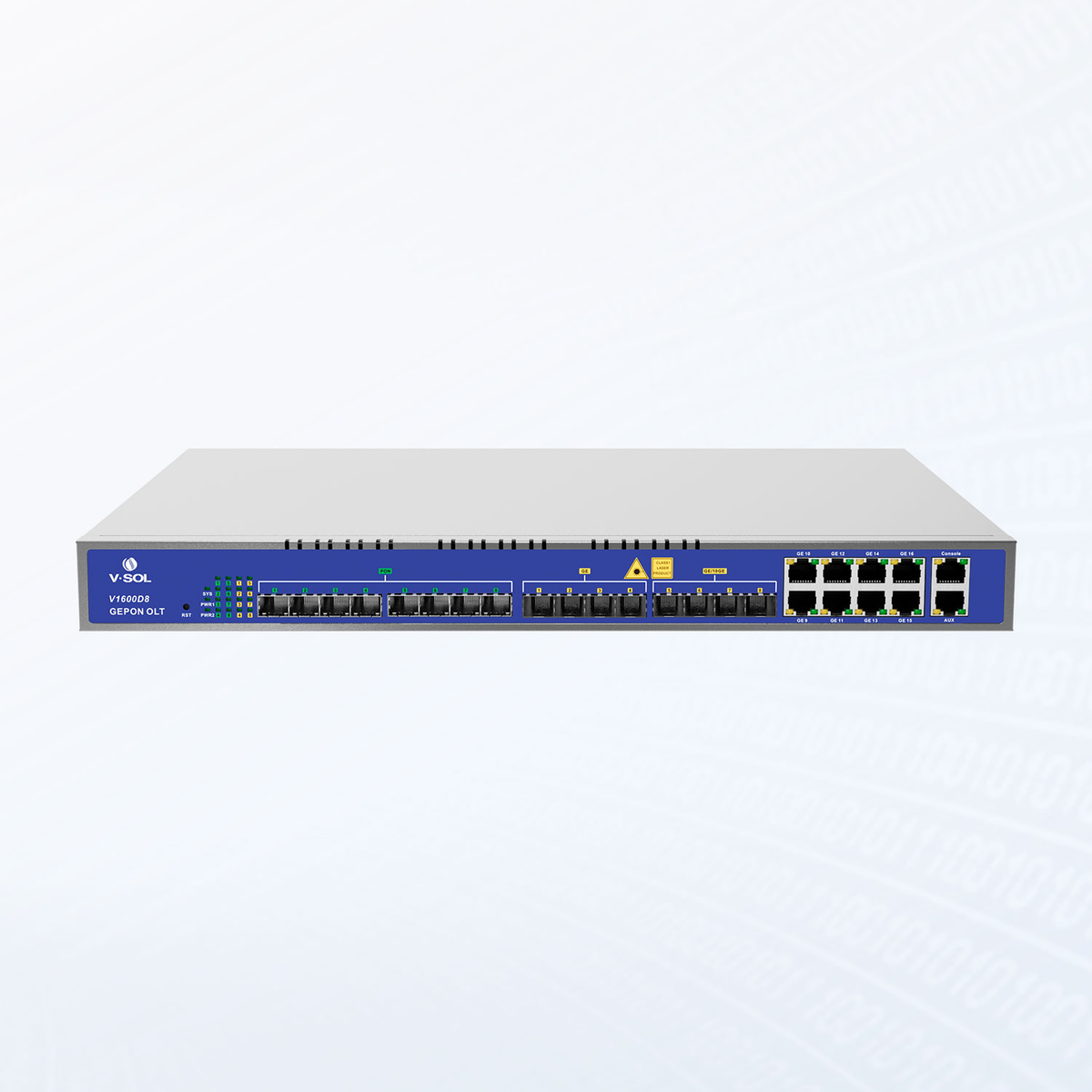

V-SOL V1600D8 8 Port EPON OLT

Description

The V-SOL V1600D8 is a 1U rack-mounted Layer 3 EPON Optical Line Terminal designed for FTTH and broadband access networks. It provides 8 EPON ports with high-capacity Gigabit and 10G uplink interfaces for flexible network deployment.

• 8 × EPON ports
• 8 × Gigabit Ethernet RJ45 uplink ports
• 4 × 1G SFP ports
• 4 × 10G SFP+ ports
• Maximum splitting ratio: 1:64
• EPON speed: symmetrical 1.25 Gbps
• Transmission distance: up to 20 km
• Wavelength: TX 1490 nm / RX 1310 nm
• SC/UPC connector and 9/125 μm single-mode fiber
• Supports PX20, PX20+, PX20++, and PX20+++ PON modules
• 1U 19-inch rack-mount chassis
• Layer 2/Layer 3 networking and EMS, WEB, SNMP, Telnet, CLI and SSH management
• AC 100–240V, 50/60Hz; DC -48V support; dual power backup supported
