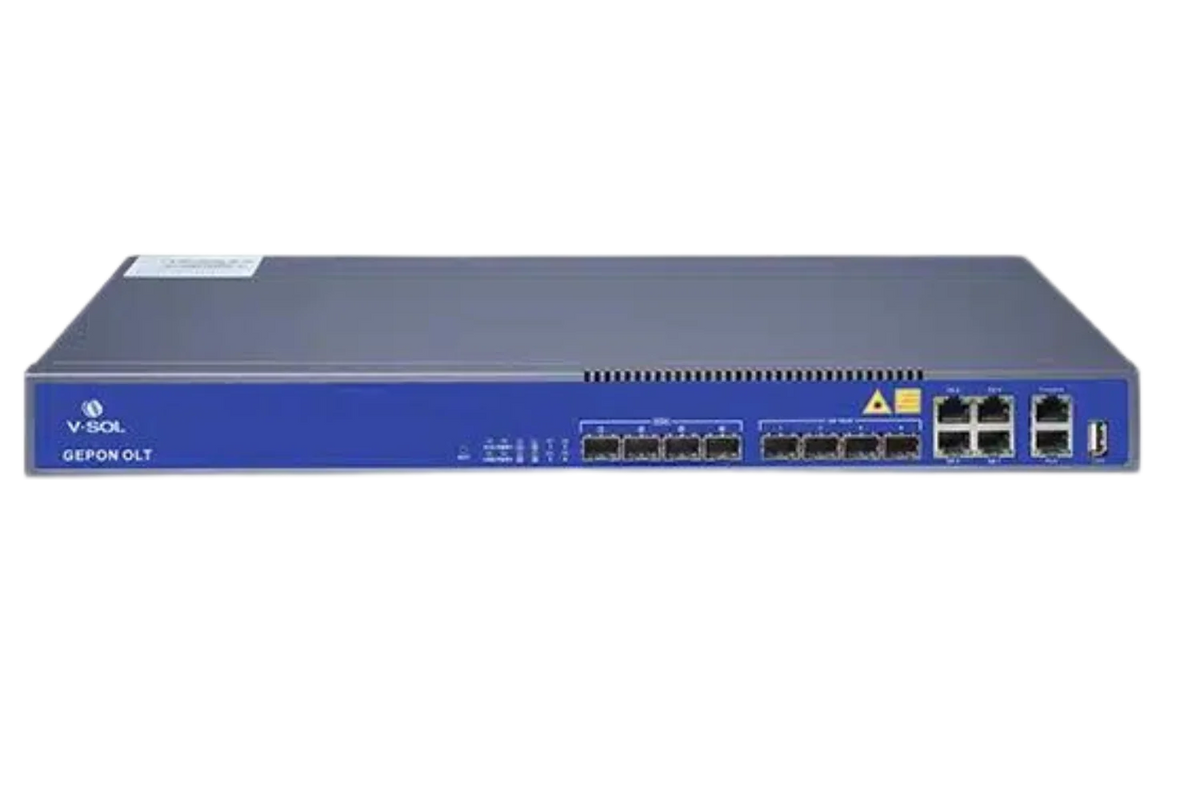

V-SOL V1601E04-DP 4 Port EPON OLT

Description

The V-SOL V1601E04-DP is a 4-port Layer 3 EPON Optical Line Terminal designed for FTTH, broadband access, enterprise LAN, IP camera and triple-play network deployments. It provides four EPON ports with flexible Gigabit Ethernet and SFP/SFP+ uplink connectivity in a 1U rack-mount chassis.

• 4 × EPON ports
• 4 × RJ45 uplink ports
• 4 × SFP/SFP+ uplink slots
• Layer 3 switching and routing features
• Maximum splitting ratio: 1:64
• Supports PX20, PX20+, PX20++ and PX20+++ PON modules
• Backplane bandwidth: 128 Gbps
• Port forwarding rate: 71.424 Mpps
• 1U 19-inch rack-mount chassis
• Power configuration options including dual AC or AC + DC
