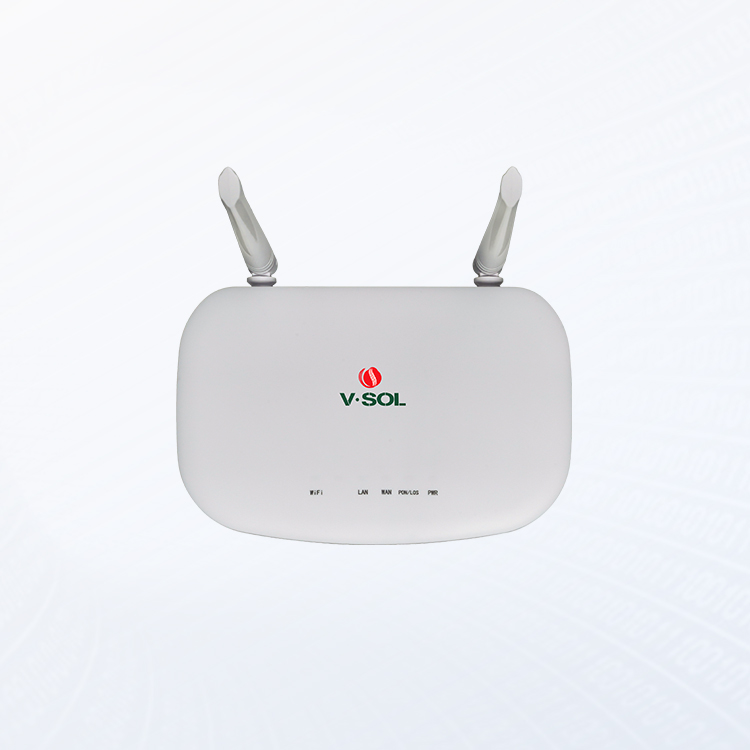

V-SOL V2801RGW G/EPON Fiber Router

Description

The V-SOL V2801RGW is a 1GE Wi-Fi 4 XPON ONT designed for FTTH and SOHO fiber access. It supports dual-mode EPON and GPON operation, with routing functions, a Gigabit Ethernet port and 2.4GHz 802.11b/g/n Wi-Fi.

• XPON dual mode: EPON PX20+ and GPON Class B+
• 1 × XPON PON port with SC/UPC connector
• 1 × Gigabit Ethernet RJ45 port
• 2.4GHz IEEE 802.11b/g/n Wi-Fi, up to 300Mbps
• 2T2R Wi-Fi with external 5dBi antennas
• TX optical power: 0 to +4 dBm
• RX sensitivity: -27 dBm
• Transmission distance: up to 20 km
• Routing mode with IPv4/IPv6, DHCP, PPPoE, NAT, DMZ and DDNS
• Firewall filtering based on ACL/MAC/URL
• Power supply: DC 12V, 1A external adapter
• Power consumption: ≤6W
• Operating temperature: -10°C to +55°C
