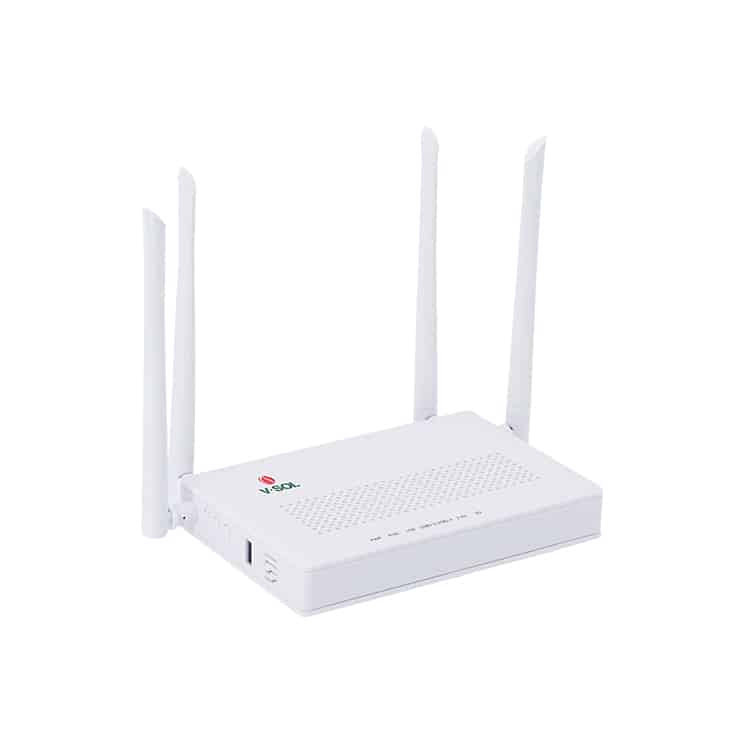

V-SOL V2802CWT G/EPON 4 Port Fiber Router

Description

The V-SOL V2802CWT is a dual-mode XPON fiber router/ONT designed for FTTH broadband access. It supports EPON and GPON operation, four Gigabit Ethernet LAN ports, USB 3.0 and dual-band Wi-Fi 5 for high-speed wired and wireless connectivity.

• XPON dual mode: EPON PX20+ and GPON Class B+
• 1 × XPON PON port with SC/UPC connector
• 4 × Gigabit Ethernet RJ45 ports
• 1 × USB 3.0 port
• Dual-band IEEE 802.11b/g/n/ac Wi-Fi 5
• 2.4GHz 2×2 and 5GHz 2×2 Wi-Fi
• 5dBi external antennas
• Wireless rate up to 1.167Gbps
• TX optical power: 0 to +4 dBm
• RX sensitivity: -27 dBm
• Transmission distance: up to 20 km
• Bridge, router and bridge/router mixed modes
• IPv4/IPv6 dual stack, DHCP, PPPoE, NAT, DMZ and DDNS
• Firewall, MAC/URL filtering and ACL support
• DC 12V, 1A external power adapter
• Power consumption: 12W
• Dimensions: 178 × 120 × 30 mm
• Net weight: 420g
• Operating temperature: -10°C to +55°C
