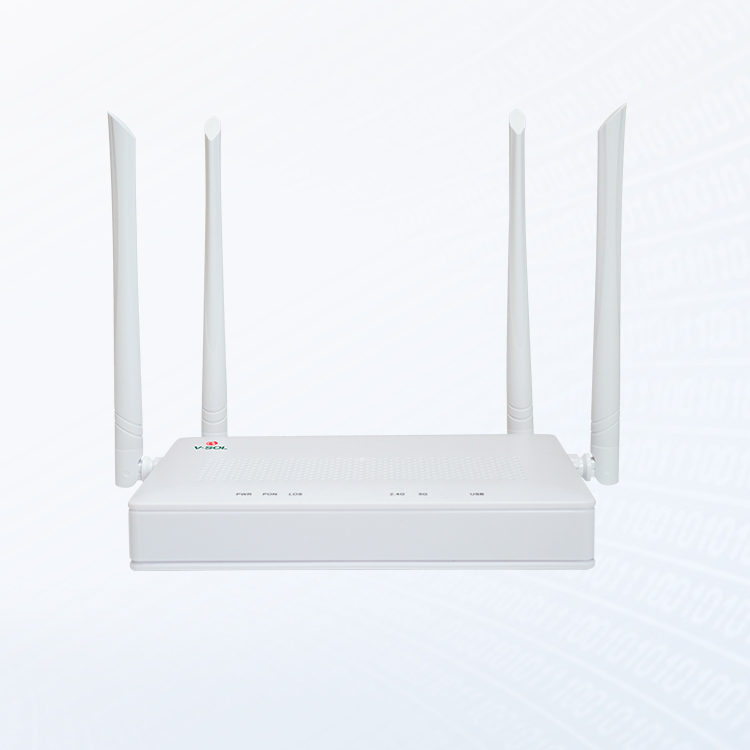

V-SOL V2802GWT G/EPON Fiber Router

Description

The V-SOL V2802GWT is an XPON dual-mode fiber ONT designed for FTTH broadband and triple-play access. It supports EPON and GPON operation, Gigabit and Fast Ethernet LAN connectivity, Wi-Fi 4, and integrated CATV functionality.

• XPON dual mode: EPON PX20+ and GPON Class B+
• 1 × XPON PON port with SC/APC connector
• 1 × Gigabit Ethernet RJ45 port
• 1 × Fast Ethernet RJ45 port
• IEEE 802.11b/g/n Wi-Fi 4, up to 300 Mbps
• 2T2R Wi-Fi with external antennas
• CATV interface with 1550 nm optical receiving wavelength
• TX optical power: 0 to +4 dBm
• RX sensitivity: -27 dBm
• Transmission distance: up to 20 km
• Wavelengths: TX 1310 nm, RX 1490 nm, CATV 1550 nm
• Bridge and routing modes
• IPv4/IPv6, DHCP, PPPoE, NAT and VLAN functions
• DC 12V/1A external power adapter
• Power consumption: ≤7W
• Dimensions: 185 × 120 × 34 mm
• Net weight: 0.29 kg
• Operating temperature: -10°C to +55°C
