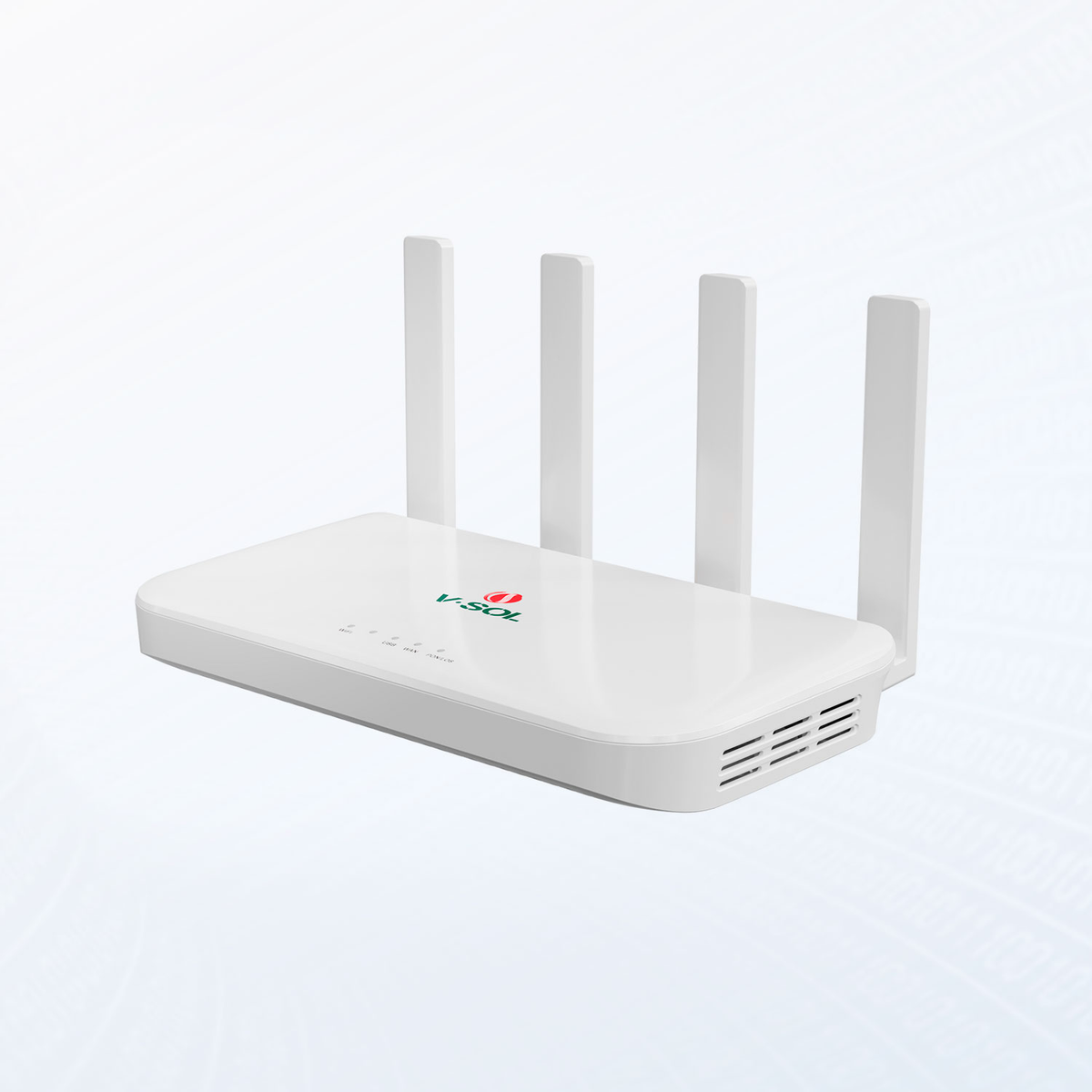

V-SOL V2804AX15 Wi-Fi 6 Fiber Router

Description

The V-SOL V2804AX15 is a dual-band Wi-Fi 6 XPON fiber router designed for FTTH broadband access. It combines EPON/GPON dual-mode connectivity with four Gigabit Ethernet ports, USB 3.0 and AX1500 Wi-Fi 6 for high-speed home and small-office networking.

• XPON dual mode: EPON PX20+ and GPON Class B+
• 1 × XPON PON port with SC/UPC connector
• 4 × Gigabit Ethernet RJ45 ports
• 1 × USB 3.0 port for shared storage/printer functions
• Dual-band Wi-Fi 6 AX1500
• 5 GHz: IEEE 802.11a/n/ac/ax
• 2.4 GHz: IEEE 802.11g/b/n
• 2 × 2 MIMO on 2.4 GHz and 5 GHz
• 4 × external 5 dBi antennas
• Supports OFDMA, MU-MIMO, Dynamic QoS and 1024-QAM
• Smart Connect for a single SSID across 2.4 GHz and 5 GHz
• Wi-Fi security: WEP, WPA, WPA2 and WPA3
• TX optical power: 0 to +4 dBm
• RX sensitivity: -27 dBm
• Transmission distance: up to 20 km
• TX wavelength: 1310 nm; RX wavelength: 1490 nm
• Routing mode with IPv4/IPv6, DHCP, PPPoE, NAT, DMZ and DDNS
• 802.1D/802.1ad bridge, 802.1p CoS and 802.1Q VLAN
• Anti-DDoS and filtering based on ACL/MAC/URL
• DC 12V, 1A external AC-DC power adapter
• Power consumption: ≤12W
• Dimensions: 250 × 145 × 36 mm
• Net weight: 0.34 kg
• Operating temperature: -10°C to +55°C

Call for Price — contact us for current pricing and availability.
